Product Description
| Size | 1/2"---72" |
| Wall thickness | Sch10-Sch160 |
| Standard | ANSI B16.9,MSS SP 43, DIN2615, EN10253, GOST17376, JIS B2313, MSS SP 75, etc. |
| Material | ASTM A234,SS304/L,SS316/L,SS321/H,ASTM WP5,WP9,WP11, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH,P295GH,P355GH and etc. |
| Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE... |
| Price Term | FOB, CIF, CFR |
| Payment | T/T 30% in advance, the balance before shipment; |
| Packaging | Plastic film,wooden cases, wooden pallet |
| Delivery | 20-30 days, after received advance payment. |
| Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry; gas exhaust; power plant; shipbuilding;water treatment,etc. |
The cap is used to seal an open end of the pipe. In piping engineering, the cap made in accordance with ASME B16.9 will be welded to the end and need not be included in the length dimension of the run of pipe.
*NPS: Nominal Pipe Size; O.D: Outside Diameter at Bevel; E: Length[NOTE(1)]; E1: Limiting Wall Thickness for Length; E: Length[NOTE(2)].
*NOTES:
(1) Length E applies for thickness not exceeding that given in column “Limiting Wall Thickness for Length, E.”
(2) Length E applies for thickness greater than that given in column “Limiting Wall Thickness for Length, E” for NPS 24 and smaller. For NPS 26 and larger, length E shall be by agreement between the manufacturer and purchaser.
| NPS | O.D mm inch |
E [NOTE(1)] mm inch |
E mm inch |
E1 [NOTE(2)] mm inch |
| 1/2 | 21.3 0.84 |
25 1.00 |
4.57 0.18 |
25 1.00 |
| 3/4 | 26.7 1.05 |
25 1.00 |
3.81 0.15 |
25 1.00 |
| 1 | 33.4 1.32 |
38 1.50 |
4.57 0.18 |
38 1.50 |
| 1-1/4 | 42.2 1.66 |
38 1.50 |
4.83 0.19 |
38 1.50 |
| 1-1/2 | 48.3 1.90 |
38 1.50 |
5.08 0.20 |
38 1.50 |
| 2 | 60.3 2.38 |
38 1.50 |
5.59 0.22 |
44 1.75 |
| 2-1/2 | 73.0 2.88 |
38 1.50 |
7.00 0.28 |
51 2.00 |
| 3 | 88.9 3.50 |
51 2.00 |
7.62 0.30 |
64 2.50 |
| 3-1/2 | 101.6 4.00 |
64 2.50 |
8.13 0.32 |
76 3.00 |
| 4 | 114.3 4.50 |
64 2.50 |
8.64 0.34 |
76 3.00 |
| 5 | 141.3 5.56 |
76 3.00 |
9.65 0.38 |
89 3.50 |
| 6 | 168.3 6.62 |
89 3.50 |
10.92 0.43 |
102 4.00 |
| 8 | 219.1 8.62 |
102 4.00 |
12.70 0.50 |
127 5.00 |
| 10 | 273.0 10.75 |
127 5.00 |
12.70 0.50 |
152 6.00 |
| 12 | 323.8 12.75 |
152 6.00 |
12.70 0.50 |
178 7.00 |
| 14 | 355.6 14.00 |
165 6.00 |
12.70 0.50 |
191 7.50 |
| 16 | 406.4 16.00 |
178 7.00 |
12.70 0.50 |
203 8.00 |
| 18 | 457.0 18.00 |
203 8.00 |
12.70 0.50 |
229 9.00 |
| 20 | 508.0 20.00 |
229 9.00 |
12.70 0.50 |
254 10.00 |
| 22 | 559.0 22.00 |
254 10.00 |
12.70 0.50 |
254 10.00 |
| 24 | 610.0 24.00 |
267 10.50 |
12.70 0.50 |
305 12.00 |
| 26 | 660.0 26.00 |
267 10.50 |
… | … |
| 28 | 711.0 28.00 |
267 10.50 |
… | … |
| 30 | 762.0 30.00 |
267 10.50 |
… | … |
| 32 | 813.0 32.00 |
267 10.50 |
… | … |
| 34 | 864.0 34.00 |
267 10.50 |
… | … |
| 36 | 914.0 36.00 |
267 10.50 |
… | … |
| 38 | 965.0 38.00 |
305 12.00 |
… | … |
| 40 | 1016.0 40.00 |
305 12.00 |
… | … |
| 42 | 1067.0 42.00 |
305 12.00 |
… | … |
| 44 | 1118.0 44.00 |
343 13.50 |
… | … |
| 46 | 1168.0 46.00 |
343 13.50 |
… | … |
| 48 | 1219.0 48.00 |
343 13.50 |
… | … |

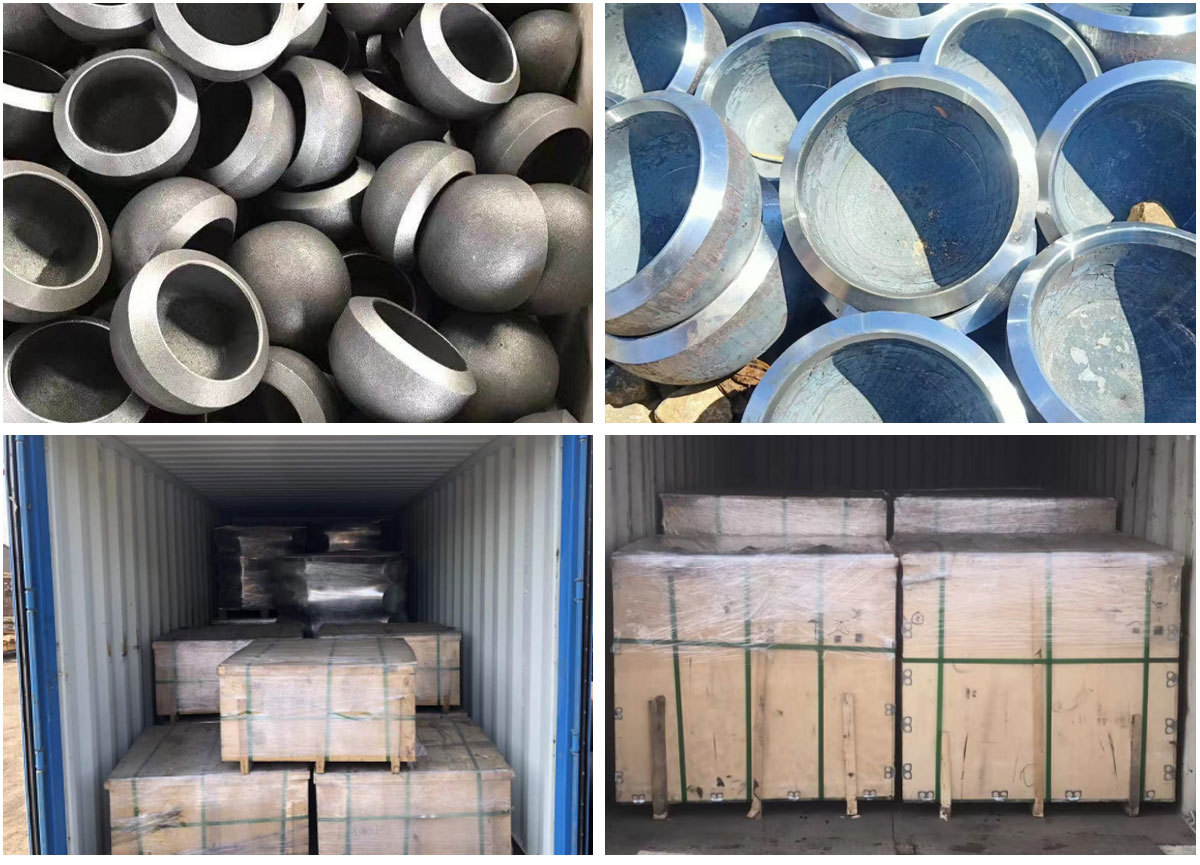

Product images
