Standard drawing of 90° & 45° long radius (L/R) elbows.
The elbow is used when a pipe changes direction. Elbows can turn up, turn down, turn left, right, or any angle in between. The long radius (L/R) elbows denote elbows with the center-to-end dimension of 1.5D radius which equals to 1.5 x NPS in inch unit. The standard long radius elbows can be further classified as 90° and 45° according to the angle of the flow-direction change.
| Place of Origin | CHINA |
| Brand Name | OUDI |
| Certification | ISO, CE |
| Standard | ANSI B16.9、 ANSI B16.28、 DIN2605/ 2615/ 2616/ 2617、 JIS B2311、 GOST 17375/ 17376/ 17377/ 17378. |
| Type | 45D/90D/180D ELBOW LR/SR, EQUAL TEE, REDUCING TEE,CONCENTRIC REDUCER, ECCENTRIC REDUCER, CAP, CROSS, SADDLE. |
| Size | 1/2" - 48" |
| Wall Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN |
| Connect Type | Butt Welded |
| Surface Treatment | Black paint, light oil, hot dip Galvanized |
| Material |
Carbon steel: ASTM A234 WPB / 20#/ P265GH/ST37.2; |
| Packaging Details | PLYWOOD CASES AND PALLETS |
| Payment Terms | T/T |
| Delivery Time | 10-45DAYS |
| Supply Ability | 5000TONS/MONTH |
| NPS | O.D mm inch |
A mm inch |
B mm inch |
| 1/2 | 21.3 0.84 |
38 1.50 |
16 0.62 |
| 3/4 | 26.7 1.05 |
38 1.50 |
19 0.75 |
| 1 | 33.4 1.32 |
38 1.50 |
22 0.88 |
| 1-1/4 | 42.2 1.66 |
48 1.88 |
25 1.00 |
| 1-1/2 | 48.3 1.90 |
57 2.25 |
29 1.12 |
| 2 | 60.3 2.38 |
76 3.00 |
35 1.38 |
| 2-1/2 | 73.0 2.88 |
95 3.75 |
44 1.75 |
| 3 | 88.9 3.50 |
114 4.50 |
51 2.00 |
| 3-1/2 | 101.6 4.00 |
133 5.25 |
57 2.25 |
| 4 | 114.3 4.50 |
152 6.00 |
64 2.50 |
| 5 | 141.3 5.56 |
190 7.50 |
79 3.12 |
| 6 | 168.3 6.62 |
229 9.00 |
95 3.75 |
| 8 | 219.1 8.62 |
305 12.00 |
127 5.00 |
| 10 | 273.0 10.75 |
381 15.00 |
159 6.25 |
| 12 | 323.8 12.75 |
457 18.00 |
190 7.50 |
| 14 | 355.6 14.00 |
533 21.00 |
222 8.75 |
| 16 | 406.4 16.00 |
610 24.00 |
254 10.00 |
| 18 | 457.0 18.00 |
686 27.00 |
286 11.25 |
| 20 | 508.0 20.00 |
762 30.00 |
318 12.50 |
| 22 | 559.0 22.00 |
838 33.00 |
343 13.50 |
| 24 | 610.0 24.00 |
914 36.00 |
381 15.00 |
| 26 | 660.0 26.00 |
991 39.00 |
406 16.00 |
| 28 | 711.0 28.00 |
1067 42.00 |
438 17.25 |
| 30 | 762.0 30.00 |
1143 45.00 |
470 18.50 |
| 32 | 813.0 32.00 |
1219 48.00 |
502 19.75 |
| 34 | 864.0 34.00 |
1295 51.00 |
533 21.00 |
| 36 | 914.0 36.00 |
1372 54.00 |
565 22.25 |
| 38 | 965.0 38.00 |
1448 57.00 |
600 23.62 |
| 40 | 1016.0 40.00 |
1524 60.00 |
632 24.88 |
| 42 | 1067.0 42.00 |
1600 63.00 |
660 26.00 |
| 44 | 1118.0 44.00 |
1676 66.00 |
695 27.38 |
| 46 | 1168.0 46.00 |
1753 69.00 |
727 28.62 |
| 48 | 1219.0 48.00 |
1829 72.00 |
759 29.88 |

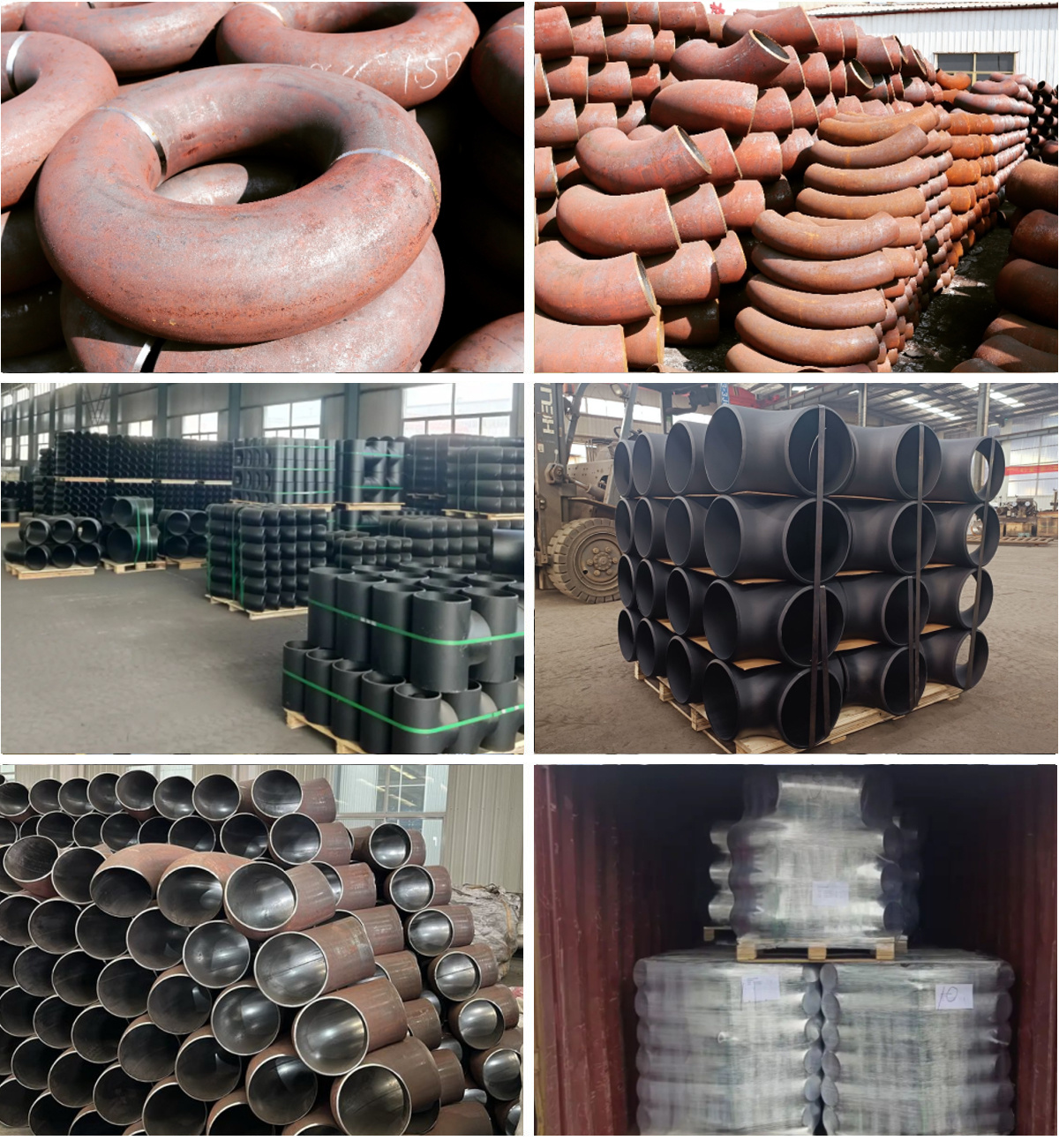

Product images
